Reflected XSS with some SVG markup allowed

PortSwigger

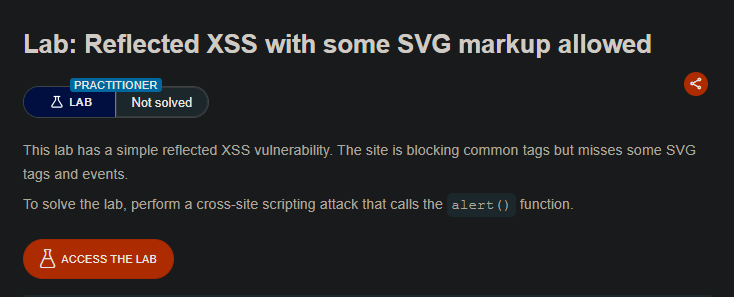

Description This lab has a simple reflected XSS vulnerability. The site is blocking common tags but misses some SVG tags and events. To solve the lab, perform a cross-site scripting attack that calls the alert() function.

Solution Steps

Step 1: Indentify the Vulneraility

Test standard XSS vector:

<script>alert(1)</script>

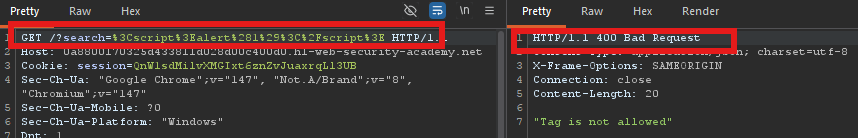

• Result: Gets blocked (400 response)

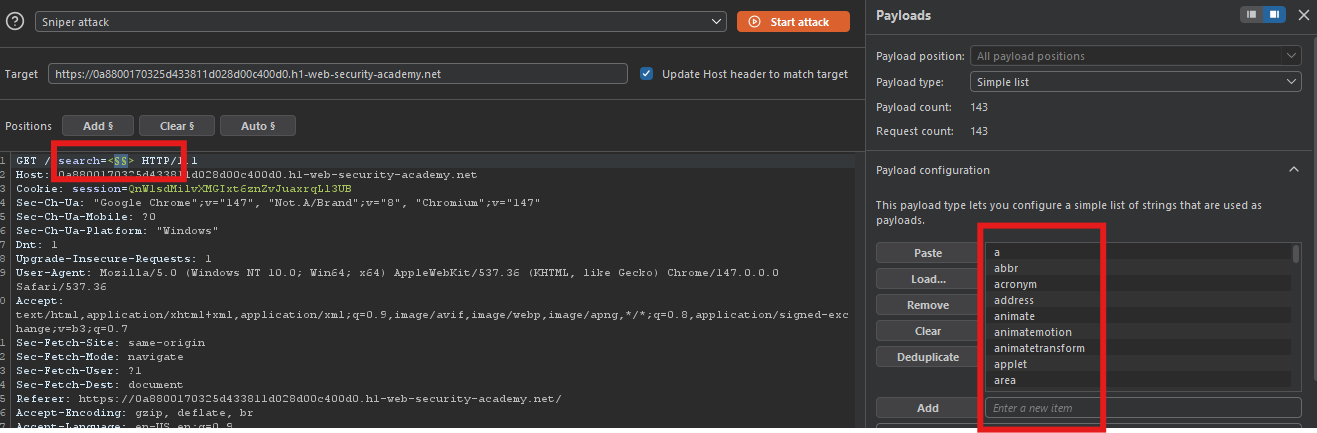

Step 2: Identify Allowed Tags (Burp Intruder)

1. Send the search request to Burp Intruder
2. Replace the search term with: <>
3. Add payload position: <§§> (cursor between angle brackets)
4. From XSS cheat sheet, copy tags to clipboard
5. Paste tags into payloads list
6. Start attack

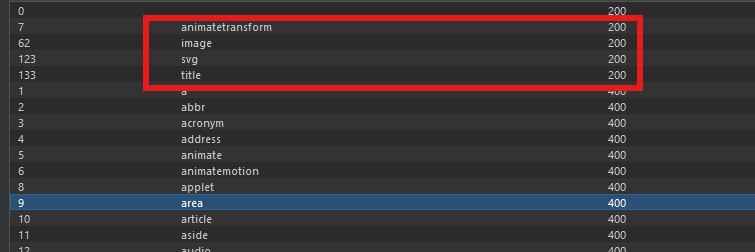

Results:

• Most payloads → 400 response (blocked)
• Allowed tags (200 response)

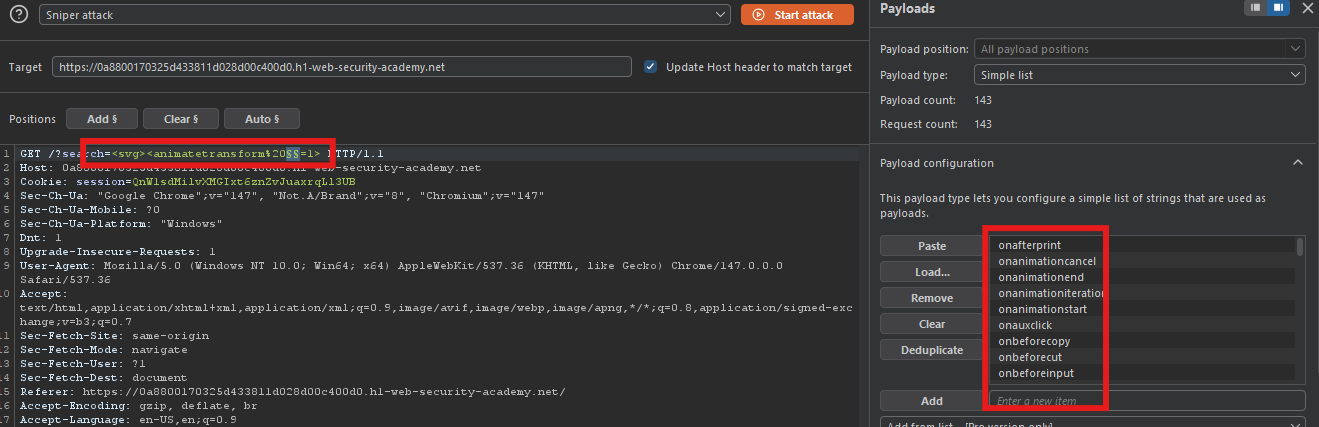

Step 3: Identify Allowed Attributes (Burp Intruder)

1. Replace search term with: <svg><animatetransform%20=1> (animatetrannsform is svg related tag)
2. Add payload position: <svg><animatetransform%20§§=1> (before =)
3. From XSS cheat sheet, copy events to clipboard
4. Clear previous payloads and paste events
5. Start attack

Results:

• Most payloads → 400 response (blocked)
• onbegin attribute → 200 response (allowed!)

Step 4: Construct the Payload

Now we know:

• Allowed tag: <svg> and <animatetransform>
• Allowed event: onbegin

Final payload:

<svg><animatetransform onbegin=alert(1)>

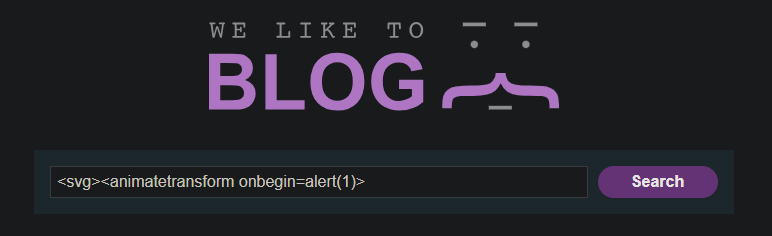

• Enter the payload into search box and Click Search button

Step 6: Solve the Lab

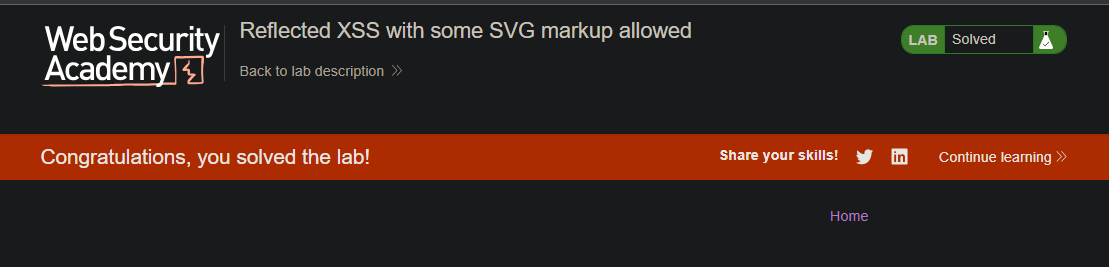

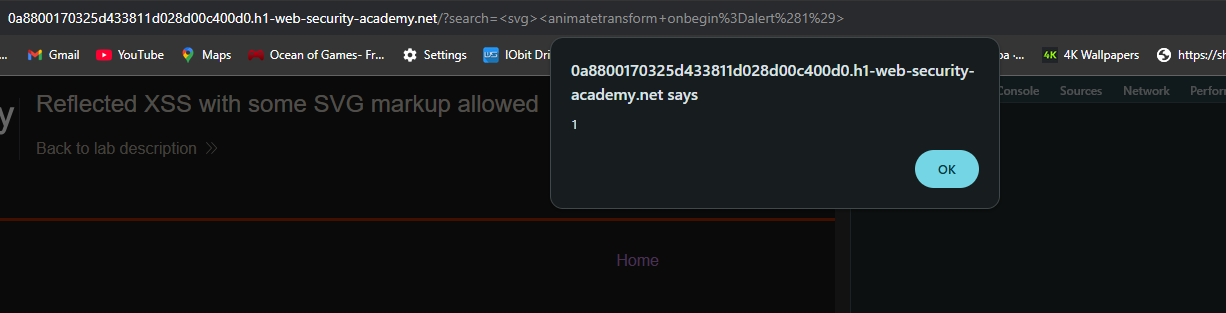

Once the alert appears, the lab is marked as Solved.

---

How the Payload Works

Part	Purpose
"	Closes any existing attribute
>	Closes any existing tag
<svg>	Starts an SVG element (allowed)
<animatetransform>	SVG animation tag (allowed)
onbegin=alert(1)	Event that fires when animation begins
>	Closes the tag
